VC220-TP

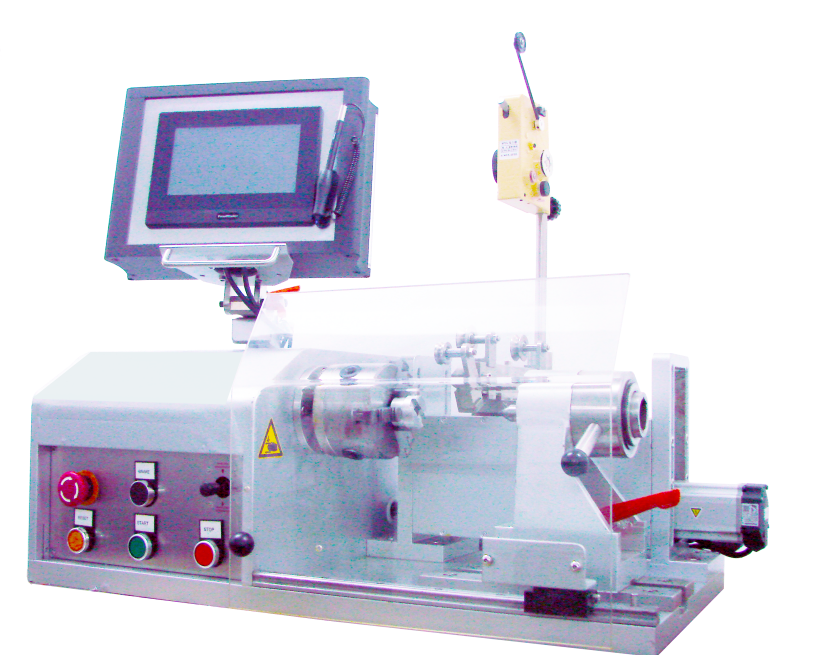

The VC220-TP is a Hi-Tech bench machine with? PLC control and incorporates VC's flexible system with interchangeable wire guides and tensioners.It is designed for hi-end applications and built SERVO motors for head drive and core drive.The software guides the operator through the porgramming with clear 220-TP extremely fast to set up and very easy to use.Typical applications for the bench machine VC 220-TP are the production of small coils.It is made of high quality iron framework and robust mechanical parts.Two interchangeable motor pulleys are fitted as standard to give four ranges of torques and speeds. The wire guide carriage has been constructed using a precision ball screw and is mounted on a steel bar with linear bearing guides.
vc-220
TECHNICAL DATA

CONTRLLER:
PLC control
Multi Language Selection

DISPLAY:
Colour touch panel 8”
Continuous read out of operation details
1 production screen with all data+keyboard

PROGRAMS:
999 Programs:
Autoduction calculation of pitch,layer full ,layer spread

PROGRAMMING:
User friendly graphic for easy understanding
1 programming screen enables set up in very short time

DATA MEMORY :
Interface for software updates
USB slot

OPERATOR CONTROLS:
Control Board Function/Save/Teach keys
Hand Control Unit:Joystick,start/stop knob
Foot Pedals:speed control,spindle brabe,creep

SETTING OF LEFT AND RIGHT LIMITS:
With teach system

SPEED AND TORQUE CHANGE:
2 Pulleys
One with high torque for larger wires
One with high speed for light wires.

TRAVERSE:
Precision ball screw
Servo Motor 0.4kw

MOTOR POWER:
Servo Motor 1.5kw

MACHINE WEIGHT:
Approx.100kg net,150kg gross

MACHINE SPACE:
Approx.712mm x 594mm

BASIC MACHINE CONSISTS OF:
1x headstock,iron casting
1x winding spindle with facelate
1x traverse unit
1x wrie guide arm
1x safety protective cover
1x touch panel
1x control unit
1x foot pedal(speed control and spindle break)
1x machine table

OPTIONAL ACCESSORIES:
Wire tensions round +flat wires/wire guides round +flat
wires/paper feeders/Edge strip feeders/winding tools,
pneumatic tailstock/chucks.

Speed&Torque Ranges

Speed

Torque

0-6000rpm

3.75Nm

0-3000rpm

7.5Nm

0-1500rpm

15Nm

0-1000rpm

30Nm



PRODUCTION

Mm/kg

Inch/Ibs

Wire Size

0.01-3.5

0.0004-0.20

Pitch

0.01-99

0.0004-3.9

Max.Coil Diameter

220

8.67

Max.Coil Width

150/350

5.9/13.76

Centre Distance

214/414

8.4/16.3

Winding Speed

0-6000rpm

Torque

0-30Nm
